MILK COOLING TANK

1.milk cooling tank price applies to storing and cooling fresh raw milk on farms, as well as fluid in small milk depot, dairy plant, food, feed, pharmaceutical plants.

2.The body is made of stainless steel, with precision polish, being difficult dirt accumulation, corrosion resistance and easy cleaning.

3.Its insulating layer is filled with rigid polyfoam of lower heat conductivity, being light and with good heat insulation.

4.The cooled raw milk can rapidly reach the needed temperature of 4C and keeps constant warm, which can prevent the generation of bacteria and make raw milk to be A-grade cream.

5.The imported compressor features with high performance, energy-saving, full sealing and protection system that prevents damage due to overload.

Features:

Capacity: 100L - 20000L

* Material: Stainless steel 304/316

* Inside shell thickness: 3.0 mm or more

* Jacket thickness: 1.5mm or more

* Outer shell thickness: 1.5mm

* Heat preservation material: Polyurethane foam ( PU ) the insulation/PU thickness is 50mm

* Refrigerants is R22 ( environment friendly )

* Automatic control box

* Accessories:

(1): CIP clean ball

(2): Inlet/outlet

(3): Sanitation manhole

(4): Respirator

(5): Mixer device

(6): others

milk cooling tank drawing

milk cooling tank drawing

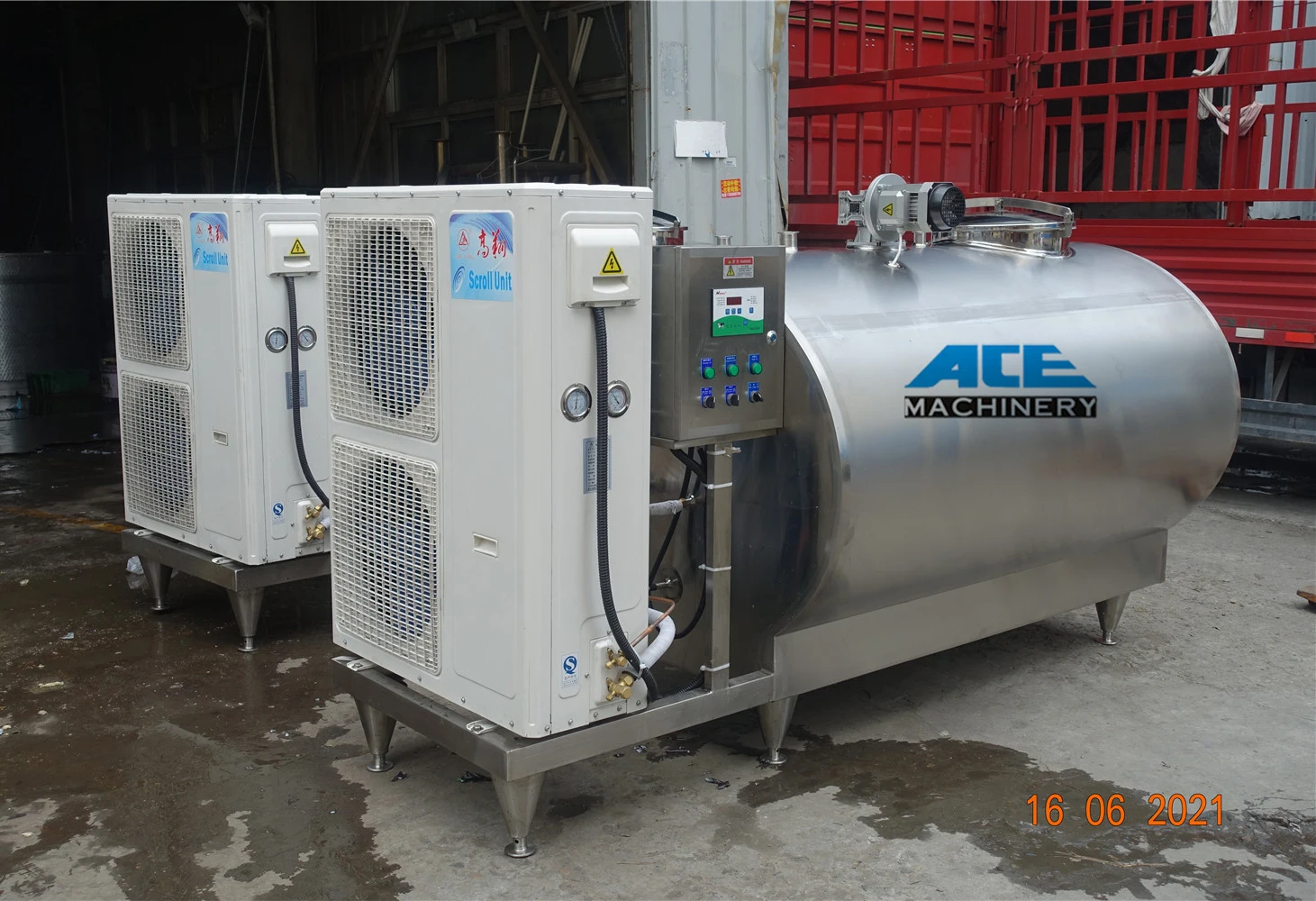

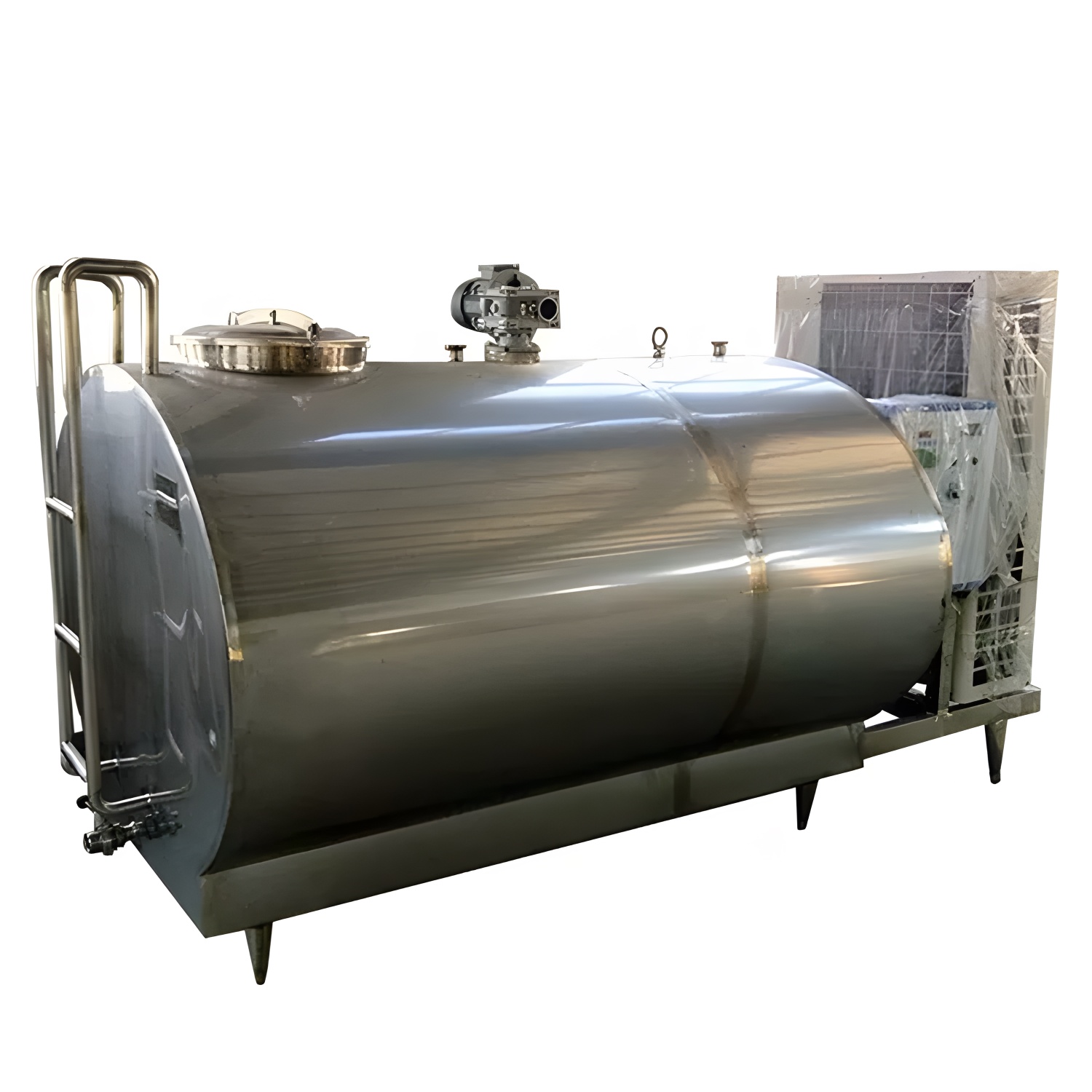

600-20000l horizontal cooling tank


2000L milk cooling tank

100-500 litre vertical cooling tank

cooler tank




Product pictures

milk cooling tankstainless steel milk cooling tankstainless steel milk cooling tankstainless steel milk cooling tankstainless steel milk cooling tank



MILK cooling tank MILK cooling tank



MILK cooling tank

Packing and delivery


milk cooling tank Packing


Requirements before installation
● Must be careful when you carry it, do not tilt more than 30°to any position.
● Check the wooden case, make sure it is not damaged.
● The refrigerating fluid has already been filled into the unit, so it is not allowed to open the valve of the compressor unit during transportation and and storage.

Location of work house
● The work house should be spacious and good air liquidity. There should be an one-meter passageway for operator working and maintain. When it is mechanized milking, you should consider about the connection with other equipment.
● The foundation of the tank should be 30-50 mm higher than the floor.

Installation of the tank
● After the tank got in position, please adjust the feet-bolts, make sure the tank tilt to the discharge hole, but not too much, just can discharge all the milk in the tank. You must make sure the six feet uniform stress, do not allow any foot be drift. You can adjust the left-right slope by Horizontal scale, make sure it is not slope to left or right.
● Switch on the inlet of condenser.
● The equipment switch on electric power must switch on the earth.
