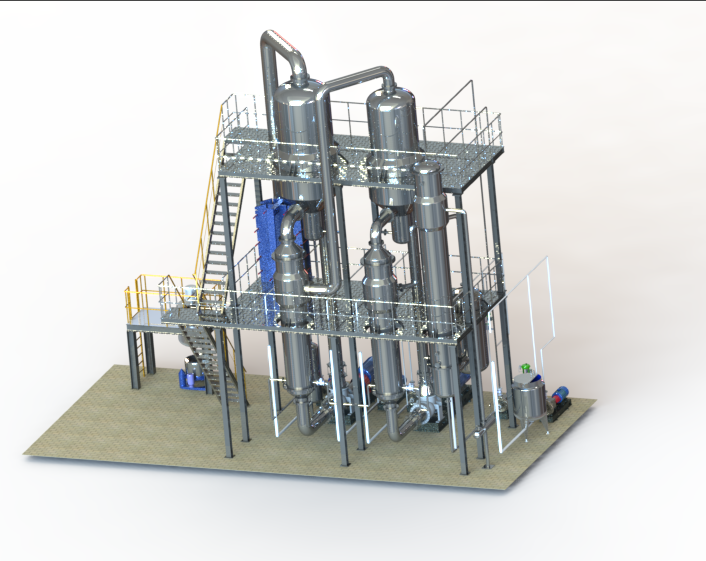

MVR evaporator
MVR evaporator

MVR evaporator

The MVR evaporator is the most efficient way to evaporate water because it uses less energy and produces less wastewater than any other type of evaporator

Product description



The MVR evaporator is the most efficient way to evaporate water because it uses less energy and produces less wastewater than any other type of evaporator. It is also the most expensive type of evaporator, but it is worth the investment because it will save you money in the long run.

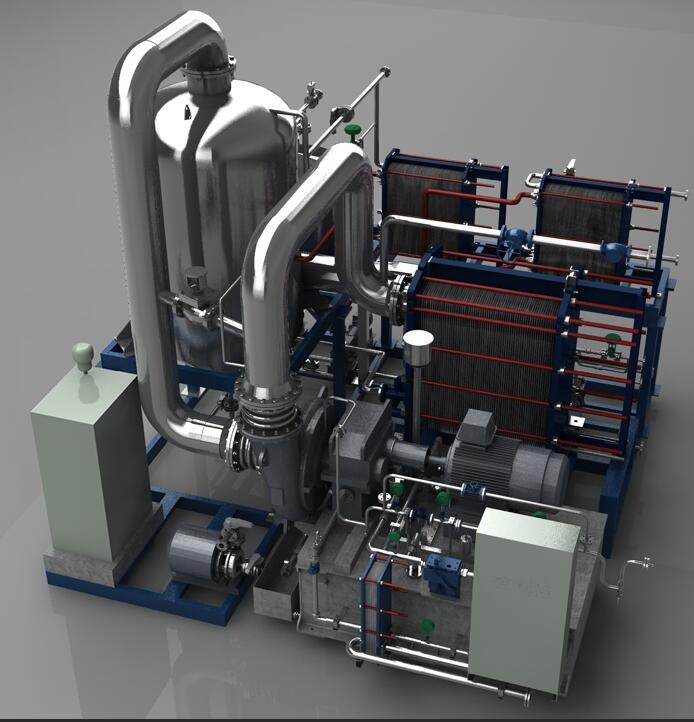

Mechanical vapor recompression (MVR) evaporator uses two steam generated in the evaporator, the compressor, pressure, temperature, enthalpy increase, and then sent to the heating chamber of the evaporator as heating steam, feed liquid to maintain the boiling state, and heating steam is condensed into water. In this way, the original steam abandoned has been fully utilized, the latent heat recovery, and improve the thermal efficiency and economy of steam is equivalent to 30 effect evaporation, reducing the external heating and cooling resource demand, reduce energy consumption, reduce pollution.

MVR evaporator


Mechanical vapor recompression (MVR) evaporator, suitable for low temperature concentration in milk, glucose, organic acid, VC, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling, papermaking, salt and other industries.

Main Characteristic

1. MVR energy-saving evaporator technology is currently the most advanced technology of the evaporator, only need a very small amount of steam (start-up small steam, in normal operation, almost no need for steam), greatly reduces the enterprise operation cost, reduce the pollution of the environment.

2.due to the use of the compressor to provide heat sources, compared with the traditional evaporator, the temperature difference is much smaller, can achieve moderate evaporation, greatly improve product quality and reduce fouling.

3. Without the condenser or only a small area of condenser, the structure and process are very simple, fully automatic operation, continuous operation, safe and reliable.

4. equipped with CIP cleaning pipeline, can be achieved on-site cleaning, the whole set of equipment is easy to operate, no dead angle.

5. the evaporator is the material at low temperature (evaporation temperature 35 degrees -100 degrees Celsius), and no foam in the state of evaporation, uniform liquid, no running material, not easy to coke, material heating denaturation minimum.

6. the traditional multi effect evaporator using fresh steam as an energy source, such as the five effect evaporator 1 tons of water consumption of 0.23 tons of fresh steam; MVR mechanical compression evaporator the energy consumption of electricity, 1 tons of water evaporation power consumption of 15-27, the general elevation smaller material can reach below 20 tons of water consumption. Energy saving and the degree of local fresh steam price and price are closely related, such as steam price 180 yuan / ton, price 0.7 yuan per kilowatt and five evaporator evaporation ratio, per a ton of energy consumption savings of 0.23*180-20*0.7=27.4 yuan, such as evaporation is 100 tons, the annual operating time is 330 days, 24 hours a day, saving the energy cost is 27.4*100*24*330=21700800 yuan per year. The MVR evaporator saves more than 60% energy than the five effect evaporator.

7.MVR mechanical compression evaporator price is multi effect evaporator 2 times, up and down, for new projects, compare investment differences, investment, purchase MVR more investment, generally in 300 operating days can be recovered. For the energy saving transformation project of replacing the original multi effect evaporator with MVR mechanical compression evaporator, the transformation investment can be recovered within 500 working days.

Technical characteristics

1,Low energy consumption,low operation cost

2,Small space occupation

3,Require fewer public utilities and less total investment

4,Stable operation and high degree of automation

5,Require no primary steam

6,Short retention time due to frequently used single effect

7,Simple process,high practicability,and excellent service performance at some loads

8,Low operation costs

9,Capable of evaporating at and below 40 celsius without any refrigerating plant and therefore particulary suitable for heat sensitive materials.

 General information you may concern

1.Evaporator' main components: Heat exchanger, Separator, Condensor, Fully Automatic Control System, Pumps, Pipes, Platforms, Steam Compressor and tanks and others.

2. Material Available: Stainless Steel 304, Stainless Steel 316L, and Titanium

3 .Production time: Usually it takes 20-60days

4. Documents offered: General Technical Drawing, Detailed Basement drawing for client' civil work

5.Used for: Landfill Leachate, juice, sugar, glucose cyrup, electroplating wastewater, salt water, organic wastewater, medicament, chemical water treatment like sodium chloride, sodium sulfate, ammonium sulfate, zinc sulfate, potassium sulfate,potassium chloride, sodium hydroxide and others

6.As for installation and commissionning: Our technical will go to your plant for installation, usually it needs 2-3 technicians.

7.What client needs to do: Client needs to prepare basement, boiler, cooling water tower' tank. And client needs to make sure there are water, electricity and steam available.

8.Please make these questions clear:

1. What kind of feeding is it? The main content is?

2. How about the feeding' inlet capacity? How many kg per hour?

3. The inlet feeding' concentration is?

4. After our evaporation process, what's your request for final output?

5. How much space do you have for installing the evaporator?

MVR evaporator

If you need MVR evaporator, please contact us. We have 20 years of experience and provide technical support.
