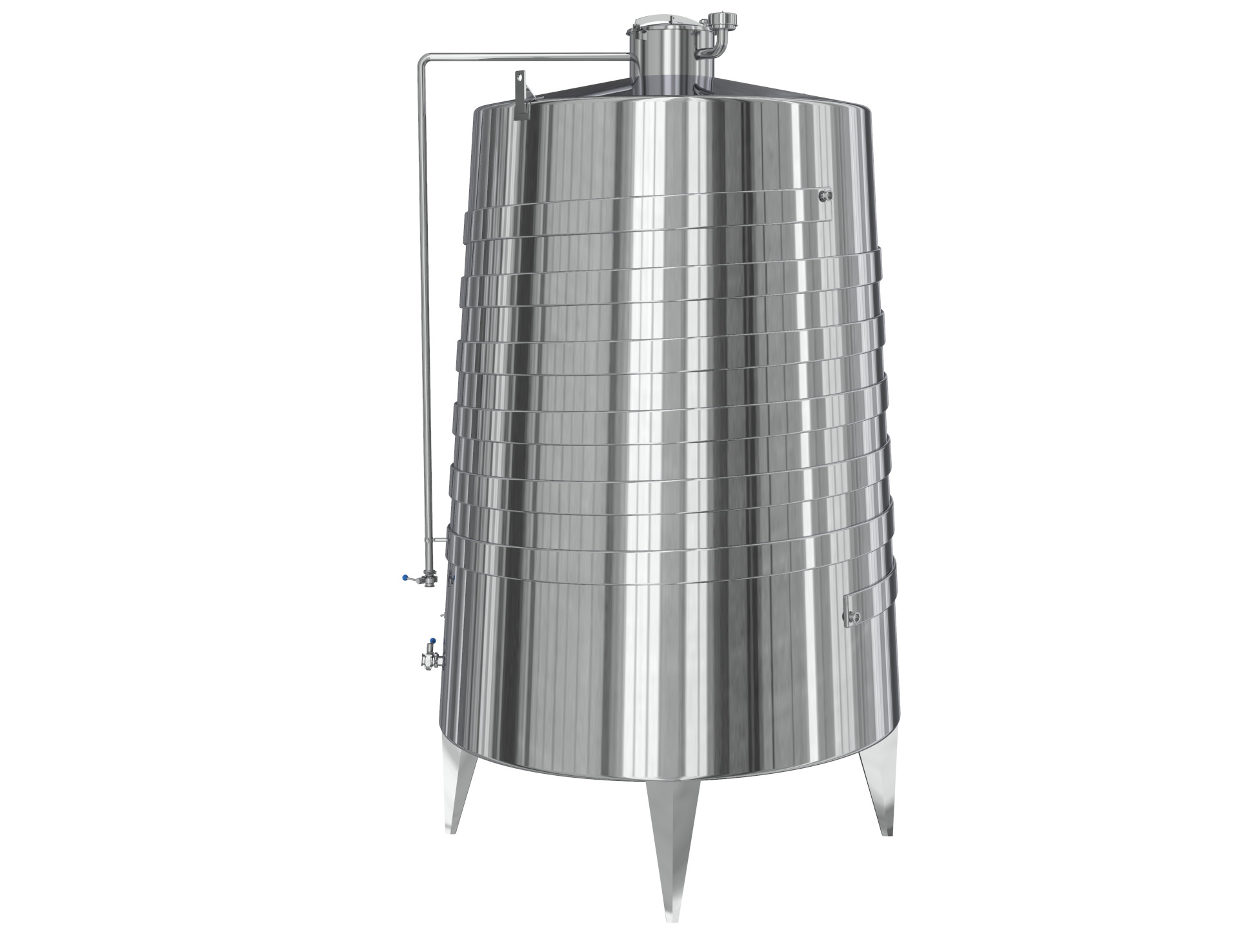

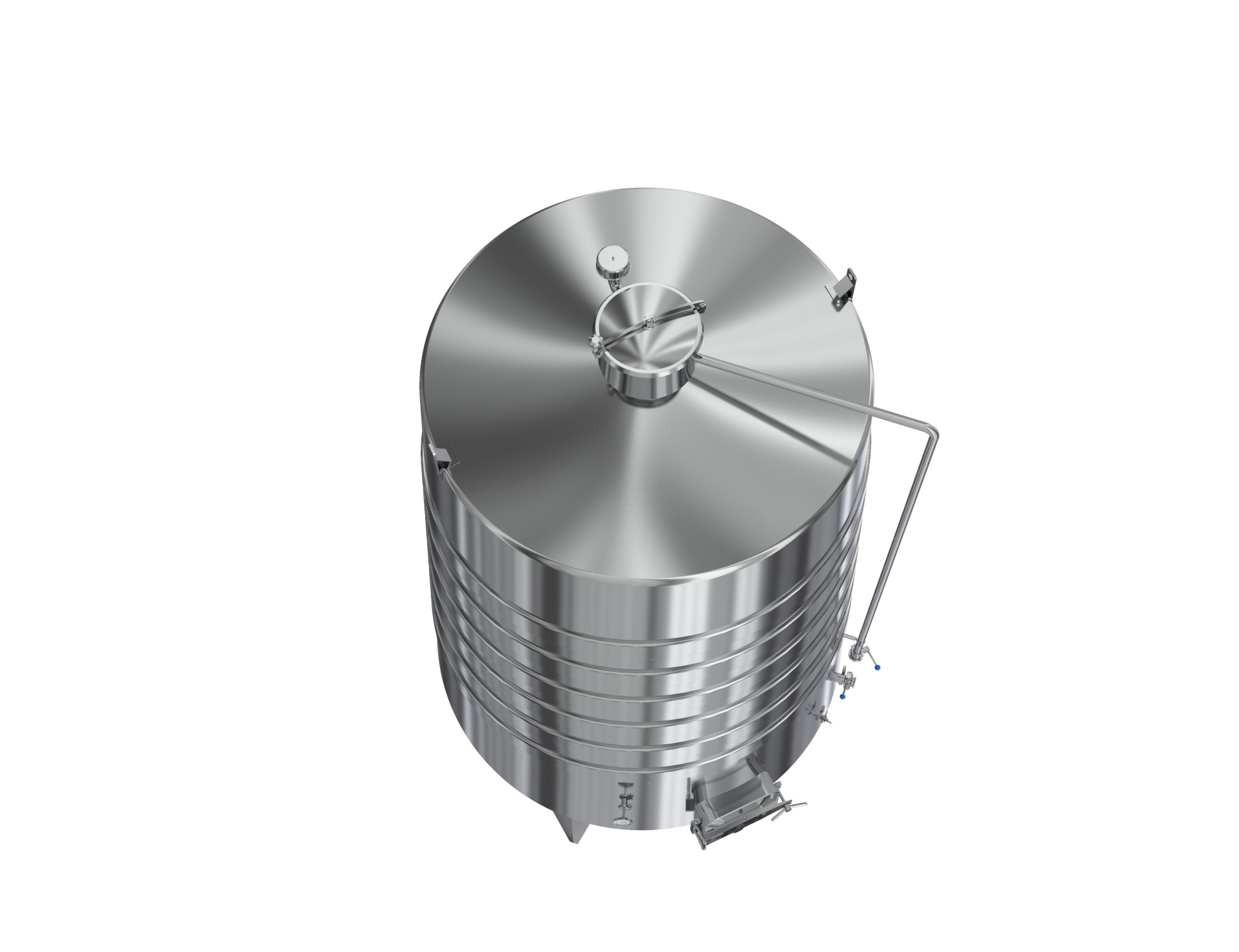

stainless steel wine tanks
stainless steel wine tanks

stainless steel wine tanks

A stainless steel wine tank is an ideal choice for wine storage and preservation. They are durable, easy to clean, and will not absorb the taste or aroma of the wine.

Product description

Description

A stainless steel wine tank is an ideal choice for wine storage and preservation. They are durable, easy to clean, and will not absorb the taste or aroma of the wine. Stainless steel wine tanks are also less likely to break than glass or plastic tanks and will not leach chemicals into the wine. Stainless steel wine tanks are available in various sizes to accommodate the needs of any wine lover.


Ace 1500L Stainless Steel Wine Tanks are commonly used for wineries, micro wineries, and commercial wineries. It can also be used as a storage tank for the finished wine.


Ace 15HL Wine Tanks are jacketed with dimple cooling jackets, which the automatic temperature controller can precisely excellent. They are well welded and have integrated turbulent baffles that eliminate temperature channeling of the glycol fluid, which increases efficiency while reducing operating and maintenance costs. Every glycol cooling jacket of the 1500L wine fermentation tank is tested at a

the pressure of 0.5 Mpa for 1 hour and 0.35 Mpa for 48hours.

stainless steel wine tanks

The conical bottom of 1500 liters wine fermentation vessel provides much convenience for yeasts' settlements or recovery. It also makes the tank cleaning much more accessible and uses the rotary CIP cleaning ball.


1500L WINE FERMENTATION TANK

SUS304 Stainless Steel

Dimple Jacketed

Front Manway

Conical Bottom

360° Rotary CIP Cleaning Ball

0.2μm to 0.4μm Inner Precision

Pickled and Passivated Interior Finish

Vacuum Pressure Relief Valve

Shockproof Pressure Gauge

Advanced Sampling Valve

Thermowell With PT100 Temp. Sensor

Rotating Racking Arm With Butterfly Valve

Discharge Arm With Butterfly Valve


Product Advantages

- Pass the certification of ISO/TUV/SGS for the production process.- Compliance with the standard of GE/PED/ASME.

- Fast response with local after-sales service in European countries and Australia.

- 5 Years Full Warranty of Tanks

- Verified by 1100+ breweries from 80+ countries worldwide.


Item

Value

Brand

A

Application

Winery, Micro Winery, Commercial Winery

Functions

Wine fermentation

Capacity

1500L, 1500 Liters, 15 HL

Material

SUS304 Stainless steel. 304L, 316, 316L stainless steel available upon special request

Tank Thickness

3mm

Cooling Jackets

Dimple jackets on the shell

Cooling Area

2.8m2

Interior Finish

2B Stainless steel plate

Exterior Finish

Oil brushed stainless steel plate

Polishing Precision of Interior Finish

0.2μm to 0.4μm

Temperature Control

Automatic Temperature Control

Manway

Stainless Steel Atmospheric Manhole

Dimension(D*H)

φ1050mm x 2450mm

Weight

400 kg

Warranty

5 years
