A reflux still is a type of still that is used in the distillation of alcohol The design of a reflux still is such that it allows for a very efficient distillation of alcohol

Product description



A reflux still is an apparatus for distilling liquids and is often used to produce alcohol.

The main advantage of a reflux still over other types of stills is that it can produce a higher purity product.

If you're looking to produce alcohol, a reflux still is the best way to go. Unlike other types of stills, a reflux still can produce a higher purity product. This is because a reflux still allows for a greater degree of control over the distillation process. One of the main advantages of a reflux still is that it can be used to produce a variety of different products.

We can customize stills according to your needs, with any size boiler or column diameter. The columns & condensers can be made with Copper or stainless steel according to your needs.

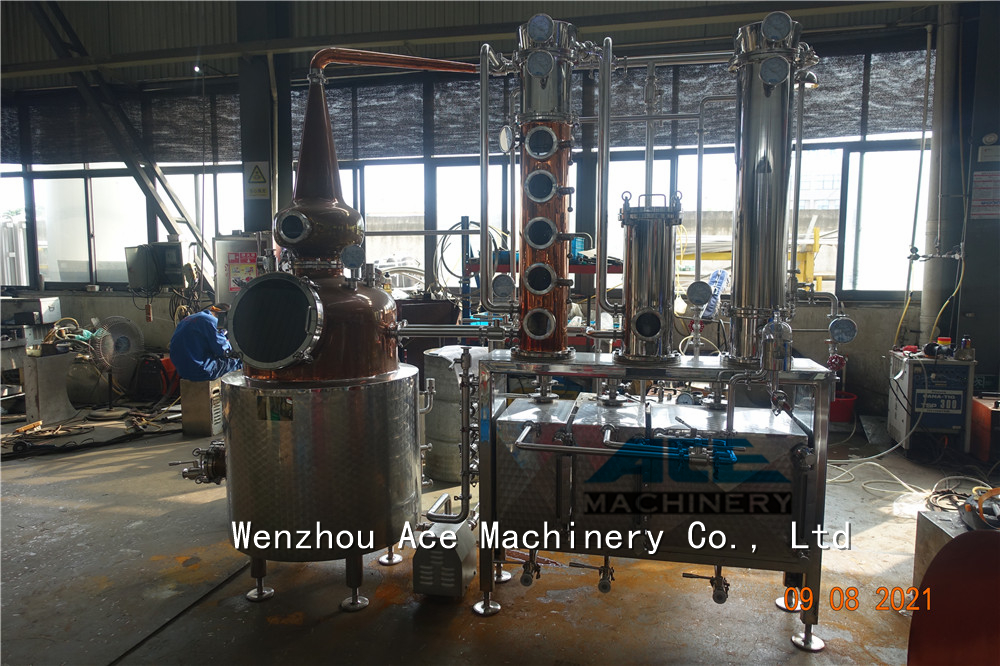

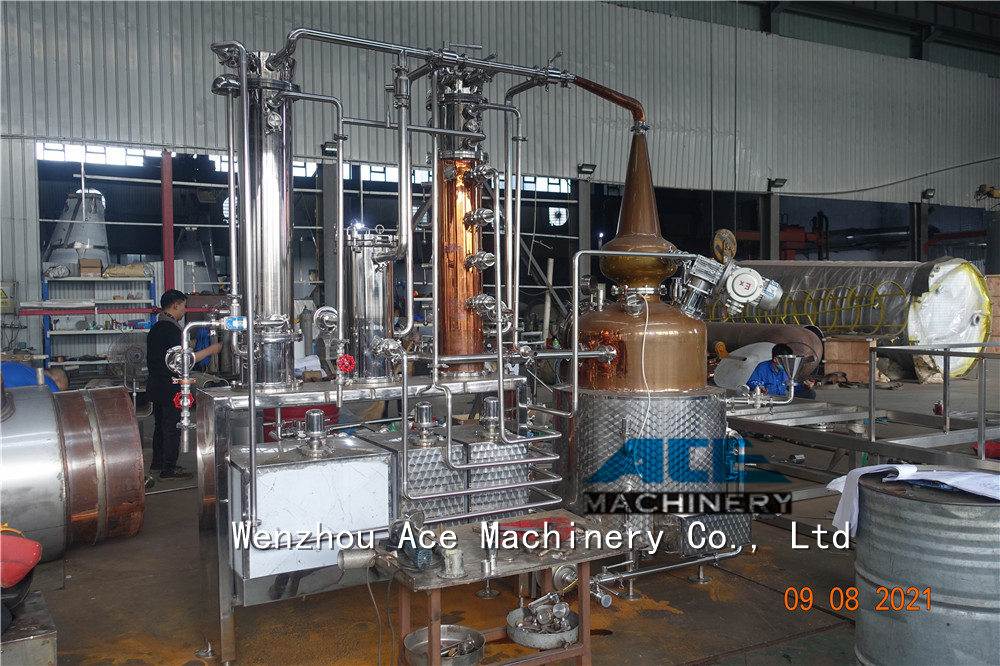

The picture above is of our Jacketed, Steam Heated, or electric heating versatile reflux column stills distilling equipment. These Stills can be heated by a Low-Pressure Steam Boiler or by our optional Electric Self Contained oil bath Heating System or direct fire heating system.

This type of still is versatile and multi-functional, great for stripping Gin, Rum, Brandy, Moonshine, Vodka, and Whiskey.

1. This Still comes standard with:

2. Pot Materials: Stainless steel 304, Copper, or Stainless steel 304 and Copper combined

3. Different types of gin basket

4. Bubble Cap Plates Column, Column can be stainless steel, Copper, or glass

5. Column Diameter: 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20” or customized according to your requests

6. Each Plate has a sight glass window, drain valve

7. Copper or Stainless Steel Dephlegmator

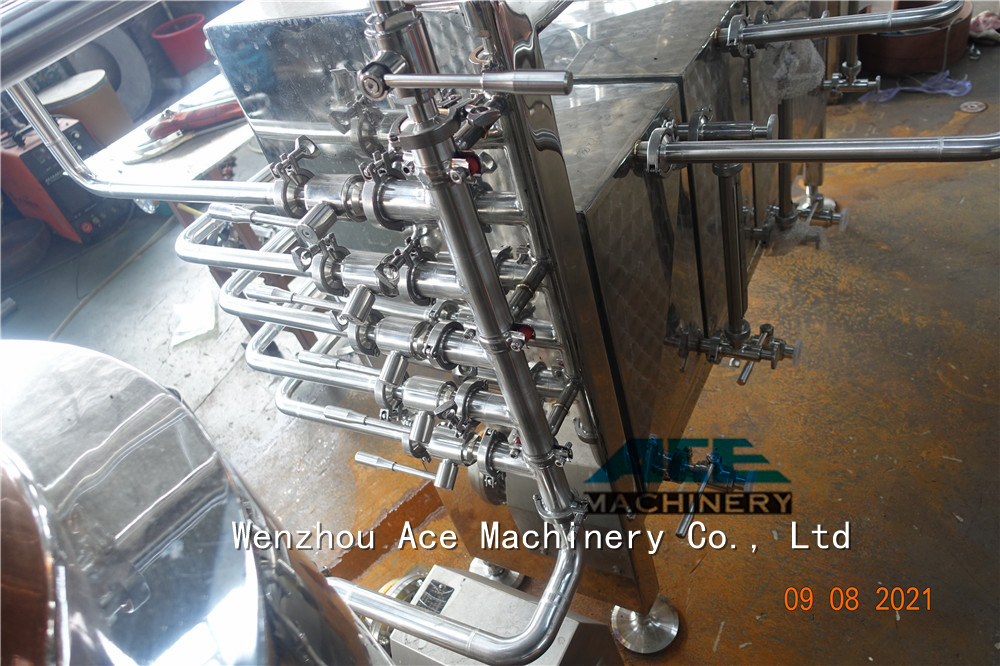

8. Bypass piping and 3-way valves

9. Agitator with long heavy blades for mash cooking

10. Italy brand gearbox, NEMA standard for North American Market

11. Explosion-proof motor can be CE, UL, CSA approved

12. Low-pressure steam jacketed heating or oil (water) bath electric heating system

13. Large glass manway

14. Variety of customized copper whisky head

15. Large size Tube and Shell Condenser, stainless steel or Copper

16. Pressure Relief Valve and pressure gauge for inner boiler and jacket

17. PU insulation

18. Tri Clamp Butterfly Valve on the drain

19. CIP in the pot, whisky head, columns, dephlegmator, and condenser

20. Stainless steel or copper parrot

21. Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.

22. Mirror Polish Inside

23. Swirl pattern outside, satin finish outside, or mirror polish

24. CIP pump and CIP manifold is optional

25. Copper spirits safe is optional

26. Coil type condenser is optional

27. Spirits storage tank is optional

28. Triclamp or DIN connection is optional
