Gin Distilling Equipment
Gin Distilling Equipment

Multifunctional Gin Distilling Equipment

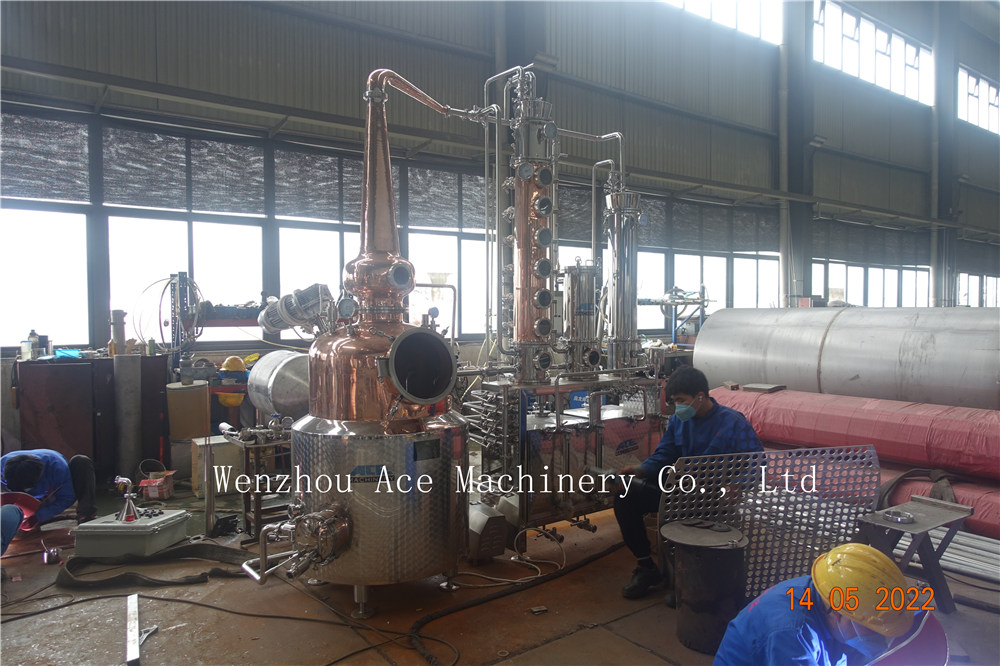

Commercial Multifunctional Stiller Alembic Whisky Gin Vodka Distiller Boiler Still Reflux Column Distillation Copper Liquor Distiller

Product description

Description

Top of pot with whole glass manway,inlet,safety valve, thermometer,pressure gauge and liquid return back hole. Top with agitator can be used to distiller any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.

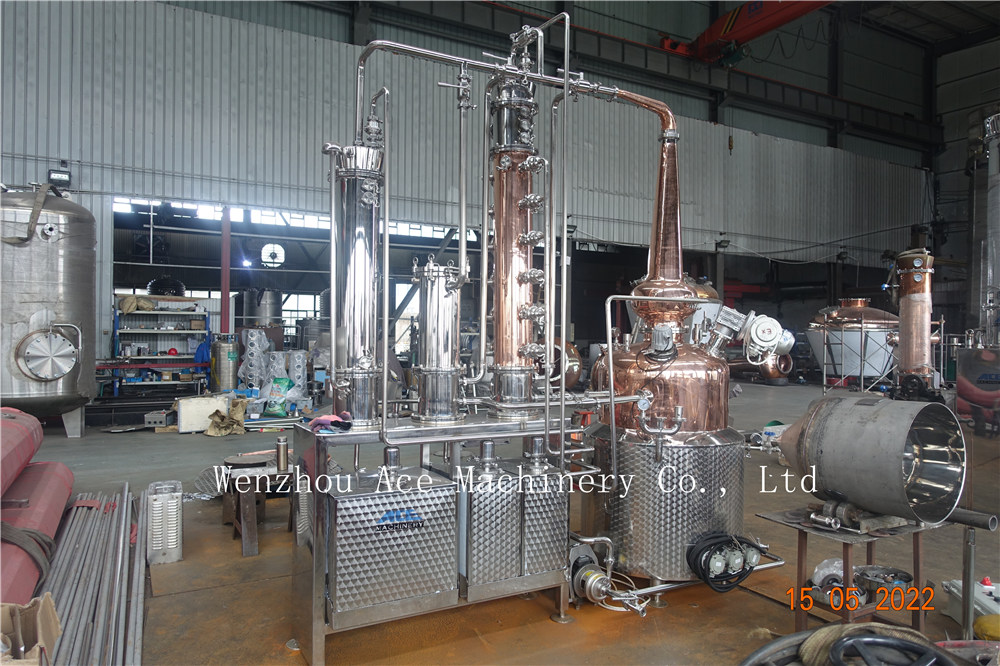

Commercial Multifunctional Stiller Alembic Whisky Gin Vodka Distiller Boiler Still Reflux Column Distillation Copper Liquor Distiller

Name

Explain

Distillation pot

1. Working Volume: 300L

2.Style: three layer design, Heating with electric heating rod, including polyurethane insulation layer.

3. Material: Copper & SUS304 stainless steel

(copper inner tank , stainless steel heating layer and fish scale coating)

4.Configuration: Full sight glass manhole, Safety valve, Pressure gauge, Thermometer, PT100 temperature sensor,

Ball valve, Drain valve, Cleaning ball, Check valve, liquid level meter, motor mixing, lighting, etc

5.Thickness: The thickness of copper liner is 3mm, the thickness of steam jacket is 2mm, and the outer casing is 1.5mm

6. Heating power: 30kW 380V / 50Hz / 3N ( Two 15kw )

Onion head

1. Material: Copper

2. Thickness:3mm

3. Configuration: Sight glass, Cleaning ball

Column

1.Material: Copper

2.Thickness:3mm(shell wall thickness)

3. Configuration:  It is equipped with red copper clapboard and copper bubble cover,

Each layer is equipped with cleaning balls; 4 layer clapboard, 5 Sight glass, the bottom layer is the reflux layer.

Dephlegmator

1.Material: Copper

2. Style: Columnwise dephlegmator (Shell and tube)

3.Thickness:3mm(shell wall thickness)

4. Configuration: Thermometer and crown cap Capping

Gin Basket

1. Material: 304 stainless steel

2. Configuration: Sight glass, crown cap, etc

3. Built in: clapboard

4. Thickness: shell thickness: 3mm．

Condenser

1.Material: 304 stainless steel

2. Style: Columnwise dephlegmator (Shell and tube), Inside are many stainless steel tubes

3.Thickness:3mm(shell wall thickness)

4. Configuration: Thermometer and crown cap Capping

Mouth of wine

1. Material: SUS304 stainless steel & glass cover

2. Style: simple type, easy to observe the wine situation

Storage box support

1. Material: SUS304 stainless steel(fish scale plate is used for coaming)

2. Style: new cabinet type bracket

3. Function: used to support tower and condenser

At the same time, it is a double door style with a certain storage space inside
