Inline Mixer homogenizer emulsifier emulsification pump high shear pump

Working Principle:Inline High-shear Emulsifier (Single Stage)is with horizontal structure There is a set of stator and rotor in the narrow workin...

Product description

Description


Working Principle:

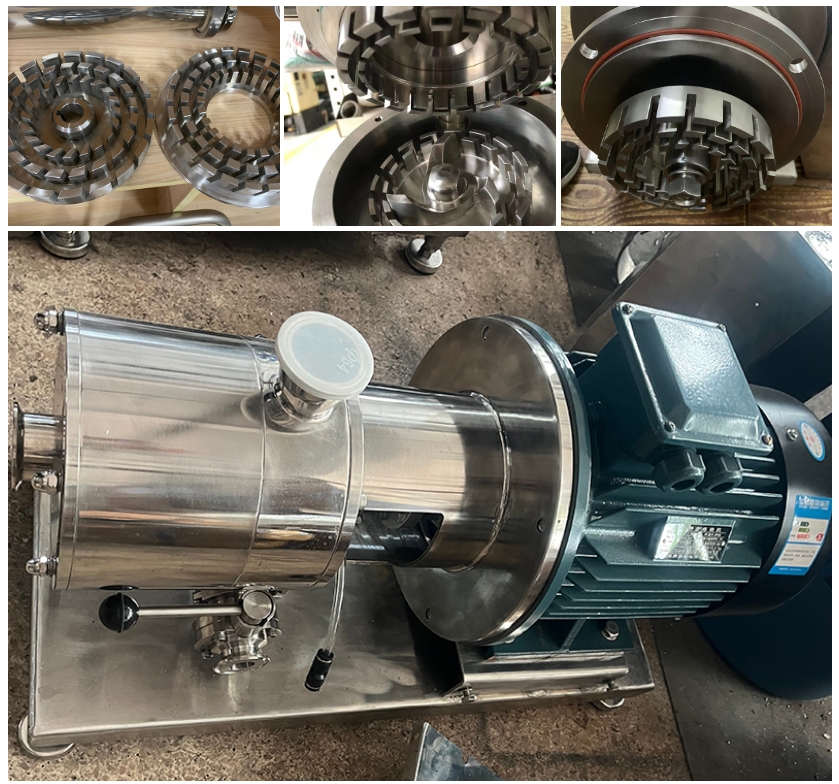

Inline High-shear Emulsifier (Single Stage)is with horizontal structure. There is a set of stator and rotor in the narrow working chamber. The stator and rotor is double coupling design with high matching precision. The central shaft driven by the motor rotating at a high speed vacuumizes the gap of the rotor and stator, which suck the materials into the stator-and-rotor chamber.

Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor.

After processed, the materials are flying out and generates strong turbulence under the action of forces from different directions.This process can circulate for times to obtain finished production with high and stable quality.


Applicable to the fields of food, dairy, beverage, cosmetic etc. industry.

1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.

2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.

3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.


Technical Tables

Model

Power(KW)

Rotation speed(RPM)

Capacity(m3/h)

TRL1-60

1.5











2900

0-1.5

TRL1-100

2.2

0-3

TRL1-120

4

0-4

TRL1-140

5.5

0-5

TRL1-165

7.5

0-8

TRL1-180

11

0-12

TRL1-185

15

0-18

TRL1-200

22

0-25

TRL1-210

30

0-35

TRL1-230

45

0-50

TRL1-245

55

0-75

TRL1-260

75

0-90

TRL1-275

90

0-110

TRL1-280

132

0-130

*The above information is for reference only and can be customized according to customer requirements.

*This equipment can be customized according to customer's materials to meet the needs of the process, such as requiring greater viscosity, enhanced homogenization function, heat sensitive materials and other requirements.


Before you place an order, please contact us, we can custom-make emulsifying homogenizer machine for all your request.

Notice:

  1. What kind of material do you want to process?

  2. What's the capacity?

  3. What is it used for? Mixing, dispersing, shearing or homogenizing?


Advantages:

  1. Suitable for on-line continuous production of industrialization;

  2. Narrow size distribution range, high evenness;

  3. Energy saving, time saving, high efficiency;Low noise, smooth operation;

  4. Eliminate the wholesale products differences;

  5.  Material 100% by shear;

  6. With short distance, low-head transmission function;

  7. Simple to use, easy maintenance;

  8. Can achieve automatic control;


Our Mixers are Designed to Mix and Disperse Efficiently

Our advanced mixing technologies enable chemical manufacturers to improve the quality of their mixed material.

Your pre-mixes will be agglomerate-free, minimizing your mill’s maintenance costs and reducing media mill screen clogging.

*Reduce batch times

*Reduce maintenance costs

*Reduce clogged media mill screens

*Eliminate air entrainment

*Quickly eliminate agglomerates

*Increase mixing efficiency and energy efficiency while reducing total cost of ownership

*Boost yield thanks to quick and efficient blending of wet and dry ingredients into a homogeneous mixture

*Increase process and product flexibility, easily handling various formulations with different viscosity, densities, and volumes

*Cut process time, emissions and installation, energy, raw material, and maintenance costs

*Improve process flexibility by leveraging the mixing and cleaning capabilities in a single unit

*Fast return on investment and low total cost of ownership due to less waste and a more sustainable use of resources

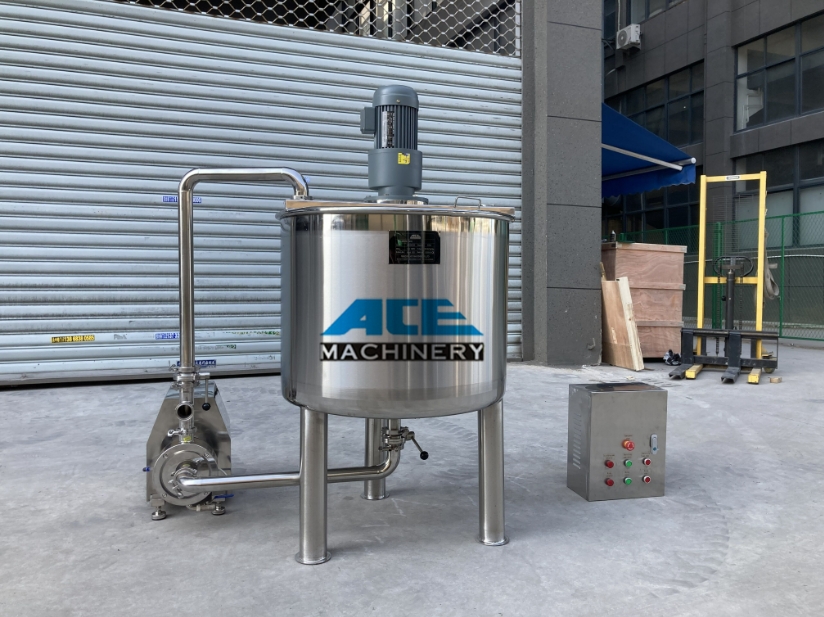

high shear tank
