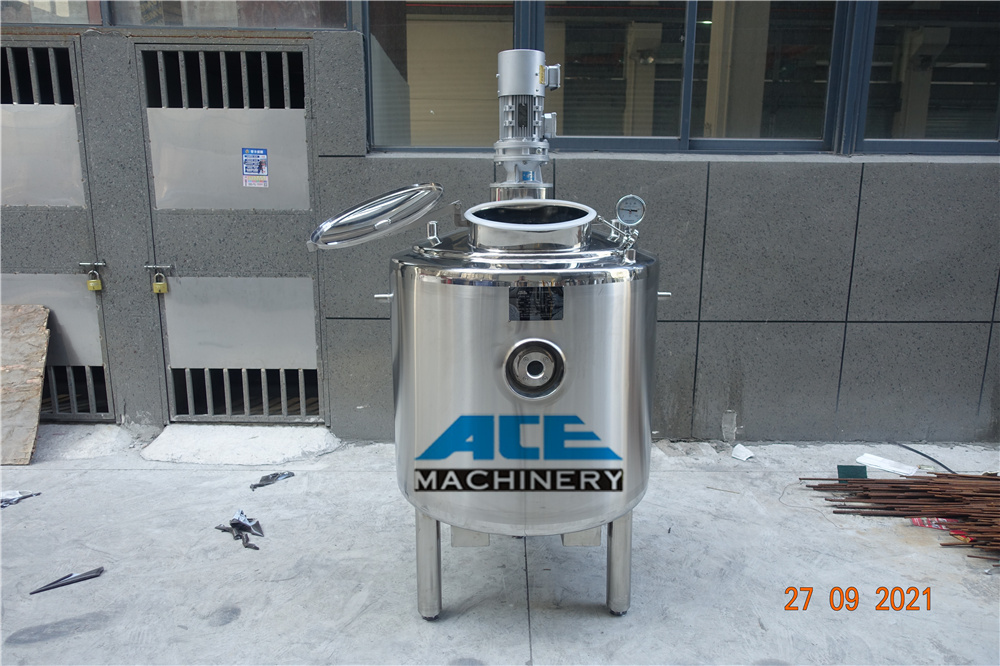

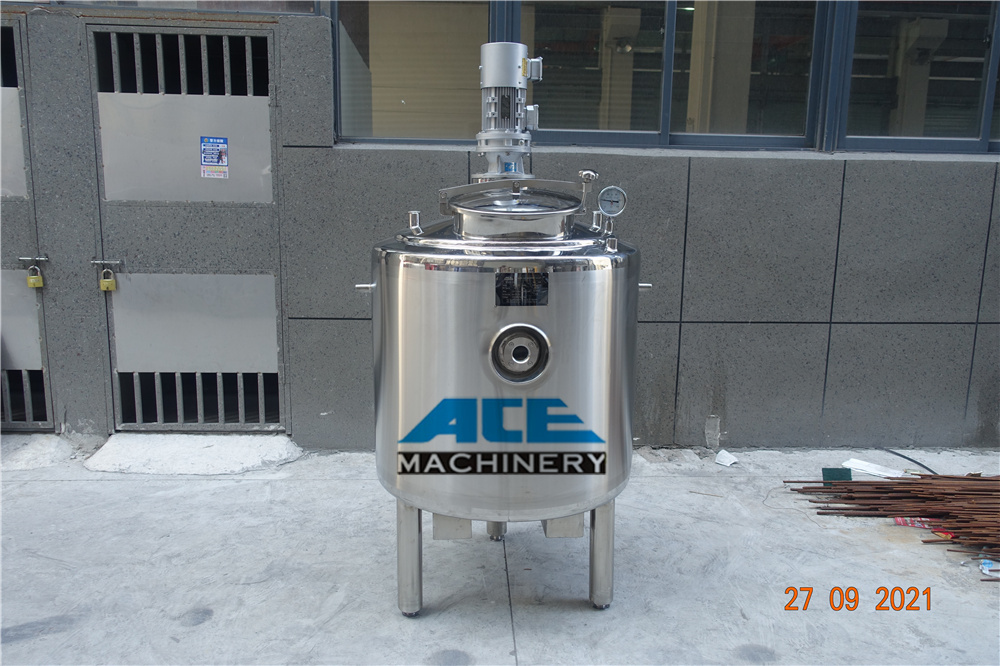

Mixing Tank
syrup mixing tank
syrup mixing tank

Food mixing tank for syrup/beverage/juice/milk

stainless steel syrup mixing tank high speed syrup beverage juice mixing tank

Product description

Description

Material: SS304 / 316L;

Capacity:50-5000L(customized is accepted);

Configuration with agitator and/or homogenizer;

Jacket:single layer,double jacket, three-layer

Thickness: 2mm,3mm,4mm,5mm,6mm,8mm etc(design according to pressure);

Head:open lid,seal with manhole/handhole etc;

Shape:cylinder or cone, conical /flat/elliptical bottom with discharge.

Heat Method:gas,steam,electricity;


Capacity

Heating power

 (KW)

Inner diameter

(mm)

Jacket diameter

(mm)

Speed(rpm)

Motor power

(KW)

ACE-50L

4*2

400

600

23-600/2800

0.75kw/2.2kw

ACE-100L

6*2

500

700

23-600/2800

1.1kw/3.0kw

ACE-300L

6*4

800

1000

23-600/2800

2.2kw/4.0kw

ACE-500L

9*4

900

1100

23-600/2800

3.0kw/7.5kw

ACE-1000L

12*4

1200

1400

23-600/2800

4.0kw/11kw

ACE-2000L

15*5

1400

1600

23-600/2800

4.0kw/22kw

ACE-3000L

15*6

1600

1800

23-600/2800

5.5kw/30kw

Structure:

The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.


1, the inner layer: adapts stainless steel plate SS304 or SS316L material, and the surface mirror polishing.

2, the middle jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the

purpose of the best heating and cooling.

3,the external insulation group: the environmental polyurethane foam casting, maintaining the temperature difference with the outside, to the effect of insulation.

4, reducer: reducer output shaft connected with the stirring paddle, the use of Looper connection, easy disassemble and cleaning.

5, additional devices: sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge,ladder, (Other special customized requirements from customers are acceptable.)

6,Mixing speed rpm and impeller type can be customized according to customers request.


mixer


FAQ

Q: How about payment term, payment safety and delivery time?

A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.

Q: How could we confirm the products?

A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.

Q: What services can we provide?

A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;

Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.

Q: What's your MOQ?

A: 1 set.
