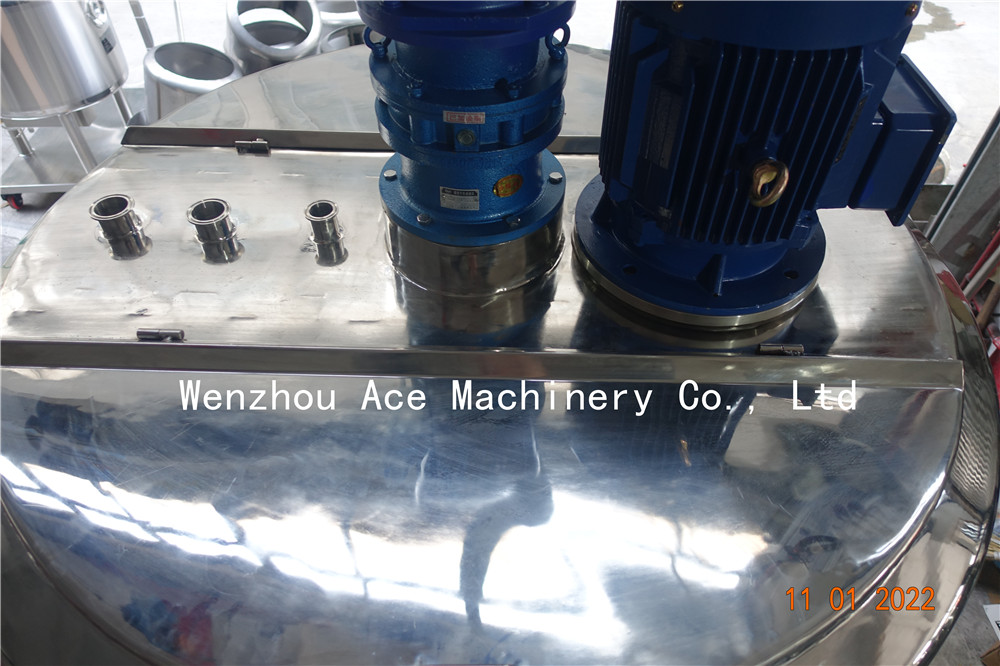

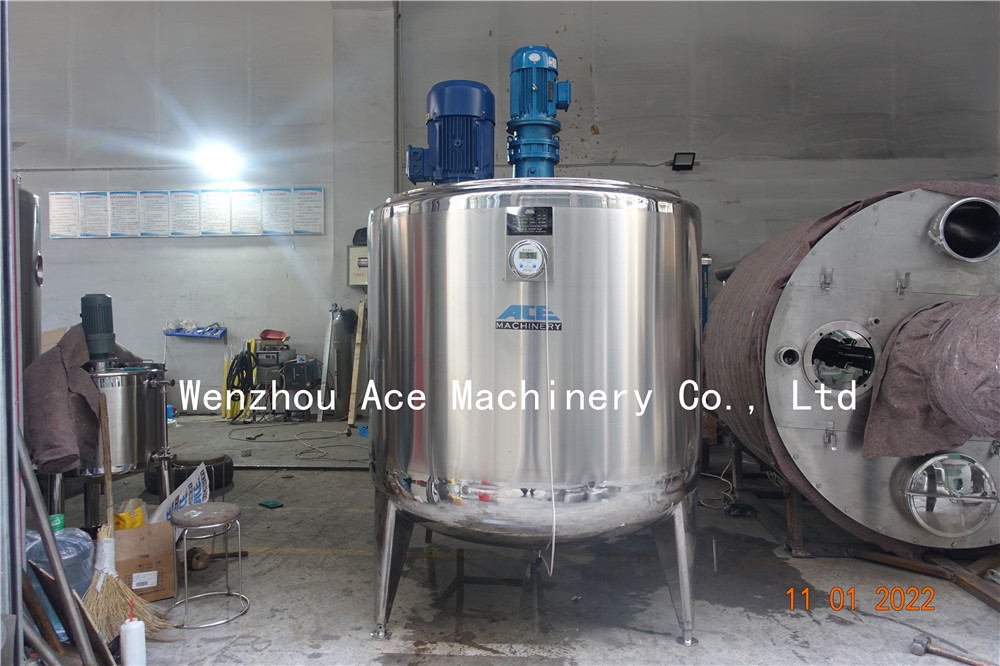

100-1000 gallon Steam heating mixing tanks

100-1000 gallon stainless steel double jacket Steam heating mixing tank

Product description

Description

1000 gallon Steam heating mixing tanks application:

This steam heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing. the heating method, we use steam heating.


Steam heating jacket mixing tank including:

1, quick open manhole at top

2, anti foaming liquid inlet,

3, CIP cleaning head,

4, dust proof respirator,

5, glass lever gauge

6, sampling valve

7, anti rotational flow outlet

8, low liquid lever sensor

9, height adjustable stand

10, Inclined oar agitator

Applicable Products:

1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.

2 Daily chemical industry:

Laundry liquid production, hand sanitizer, toilet net, car glass water.

3. Pharmaceutical Industry:

Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.

4. Food Industry:

Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.

5. Chemical Industry:

Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.


Parameters

Working Capacity/Gallons.

100

150

200

300

400

600

800

1000

Motor H.P(inner/outer).

2/3

2/3

2/3

3/5

4/7.5

4/7.5

5/10

5/10

RPMs of Agitator(inner/outer).

65/28

65/28

65/28

65/28

65/28

65/28

65/28

65/28

Product Inlet

2"

2"

2"

2"

2"

2"

2"

2"

Spray Port

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

Steam Inlet

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

Condensate Outlet

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

1.5"

Product Outlet

3"

3"

3"

3"

3"

4"

4"

4"

Diameter(φA)

36”

40"

44"

48"

55"

59"

67"

73"

Diameter(φB)

40"

44"

48"

52"

59"

63"

71"

77"

Shell Height(L)

39.34"

39.34"

39.34"

48"

48"

59"

59"

59"

Outlet Height(X)

20"

20"

20"

20"

20"

20"

20"

20"

Overall Height(H)

98"

99"

100"

109"

111"

121"

122"

123"

Design Pressure (Psi)

90

90

90

90

90

90

90

90

Design Temperature(0F)

325

325

325

325

325

325

325

325

Note:All measurements are approximate
