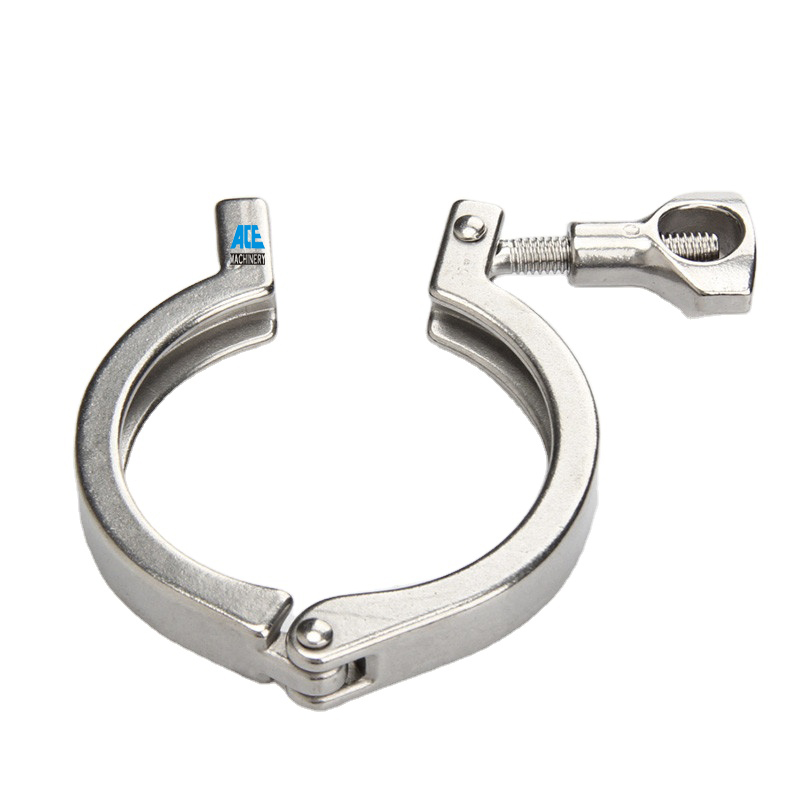

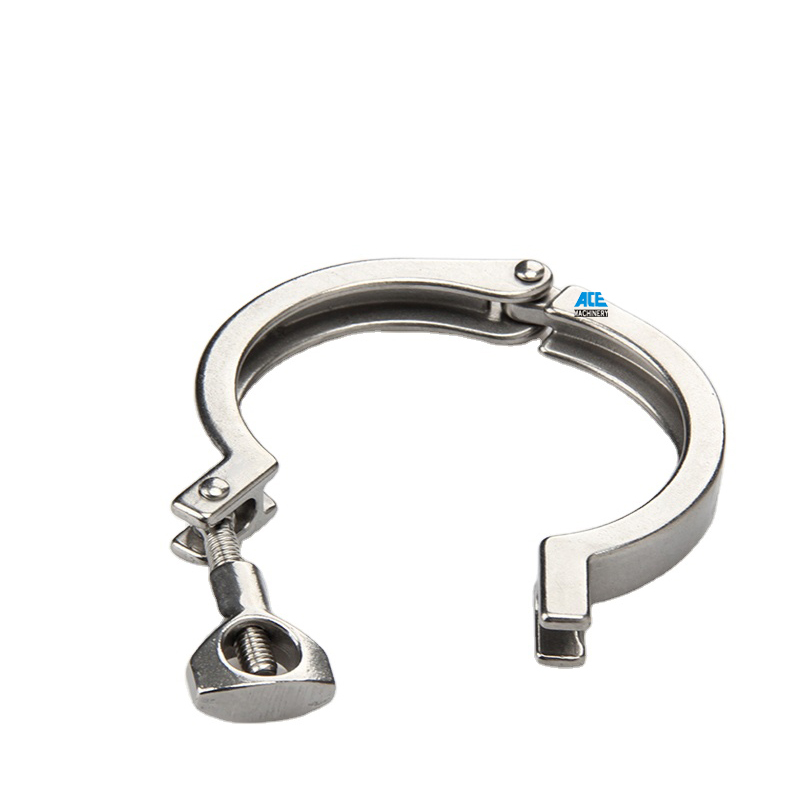

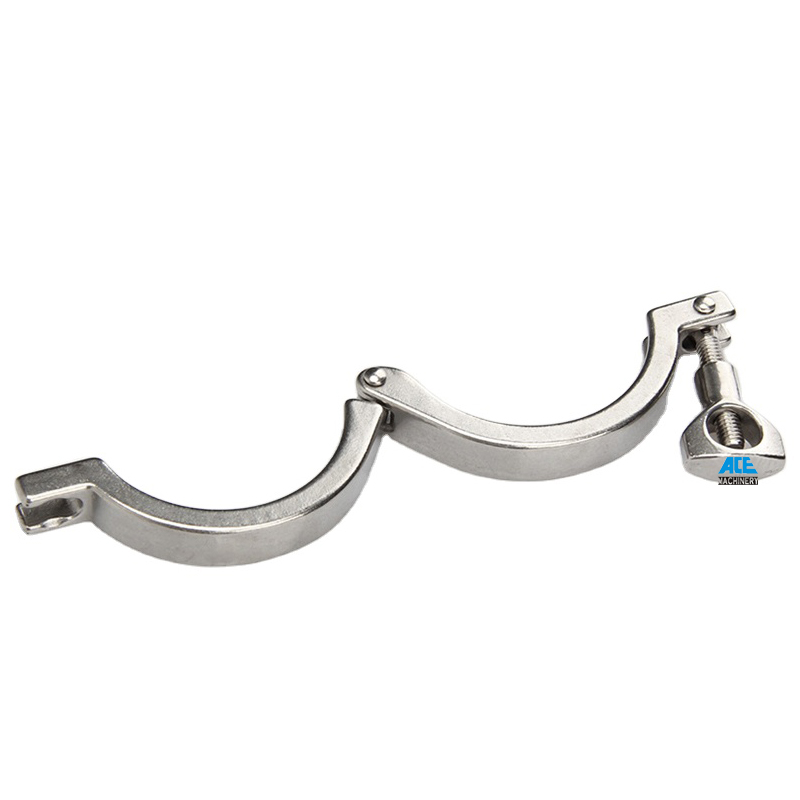

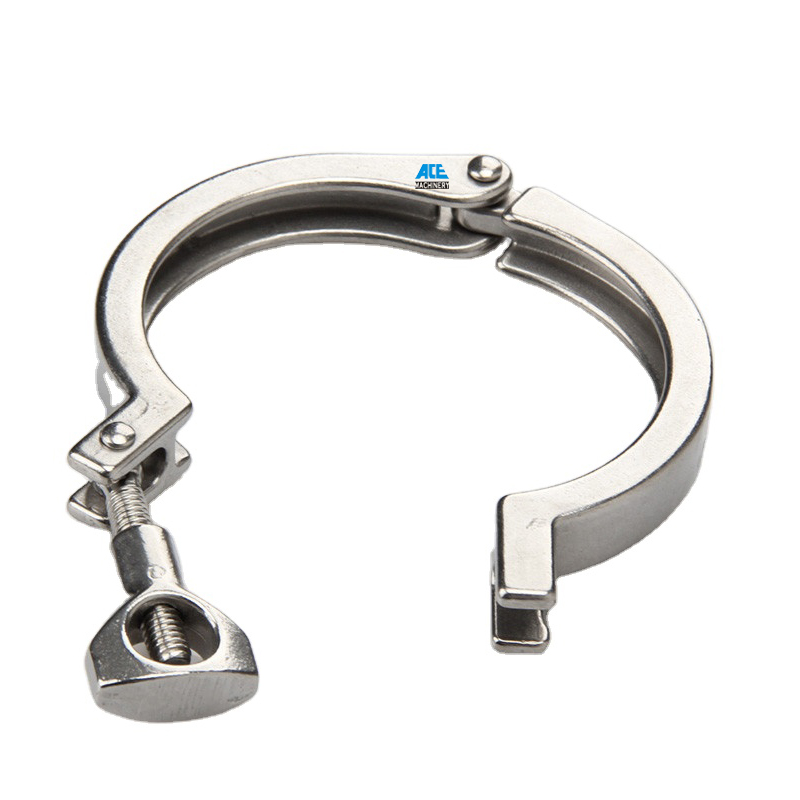

tri clamp fittings
tri clamp fittings

1.5 inch 2 inch 4 inch tri clamp fittings

A tri-clamp fitting is a sanitary fitting used in the food, beverage, and pharmaceutical industries Tri-clamp fittings are also known as tri-clo...

Product description



A tri-clamp fitting is a sanitary fitting used in the food, beverage, and pharmaceutical industries. Tri-clamp fittings are also known as tri-clover fittings or hygienic clamps. Tri-clamp fittings connect pipes and fittings, usually in a sanitary environment.

Main Parts:

Clamp liner: welded type and expanded type

Gasket: standard type and molded type, especially for frequent pipe disconnection

Clamp: high-pressure type, heavy duty type, single/double/triple pin type

Lock ring: only needed for an expanded variety of clamp coupling

3'' Tri-Clamp End Stainless Steel 2 inch Tri Clover Clamp Fittings SS Tri Clamp Sanitary Fittings

Technical Specifications:

Size: 25 ~ 219.1mm expand type, 12 ~ 76.1mm weld type

Tubing dimensions: according to ISO2037 stainless steel tubes for the food industry

Raw Material: 304 or 316L austenitic stainless steel

Surface Roughness: Ra<1μm

Angle range≤3.5° f=35mm

Maximum pipe end gap: 6mm

Technical Specifications

【Surface Treatment】: Polishing

【Connection way】: Tri clover clamp

【Product material】: stainless steel 304/316

【Applicable medium】water, oil, cosmetics cream, lotion, food, beverages, dairy products, etc.

The weight and sizes are for reference; the final is according to a different model; thanks.

1. Product features: beautiful appearance, smooth surface, acid and alkali resistance, anti-corrosion, strong texture performance

2. Product use: The inside and outside of the product are treated with high-end polishing equipment to meet the surface precision requirements; this product is suitable for stainless steel piping systems in the industrial fields of dairy, food, beer, beverage, pharmacy, cosmetics, etc.

Product Name:

Food Grade Stainless Steel SS304 Sanitary Tri Clamp Fittings C Type Clamp


Clamped union

Ferrule Length:




Valve Body Material:

AISI 304/316L


DN15-300 and 1/2" - 12"


To the stainless steel pipeling system

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or as per the request of customers

Delivery details:

Usually within 15 days after receiving T/T down payment
