tri clamp spunding valve
tri clamp spunding valve

tri clamp spunding valve for brewing

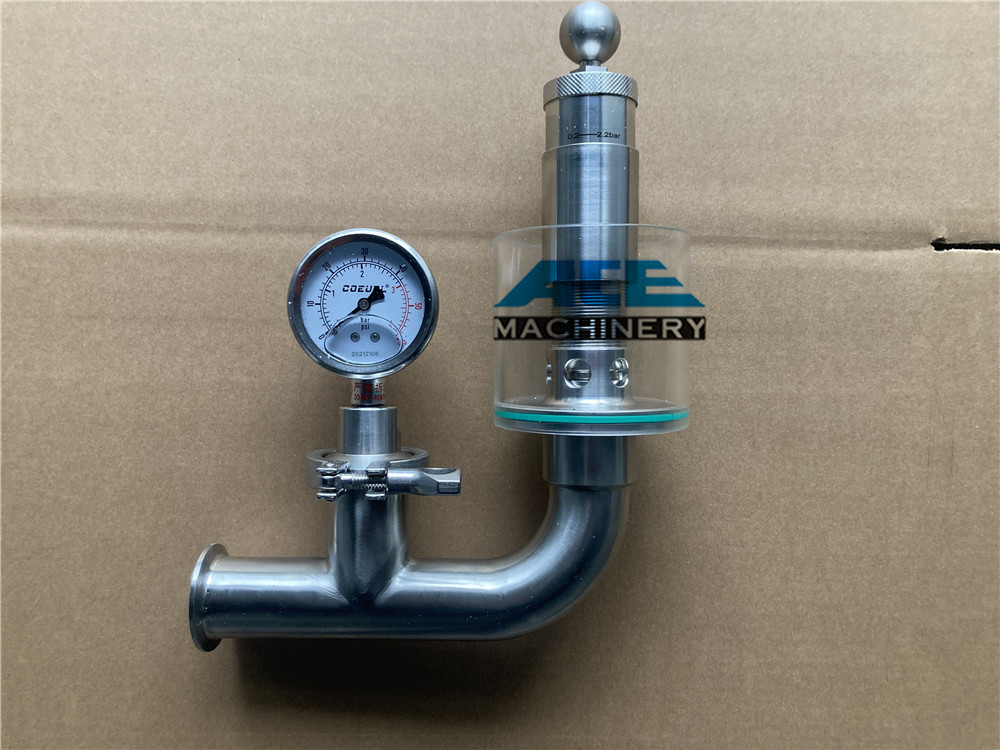

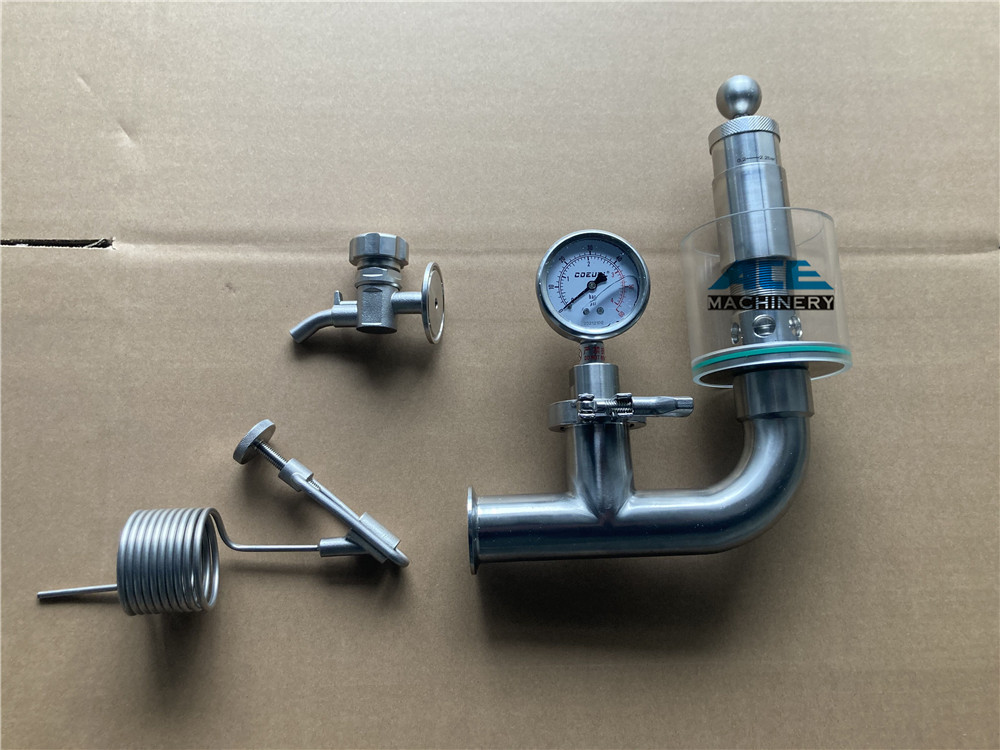

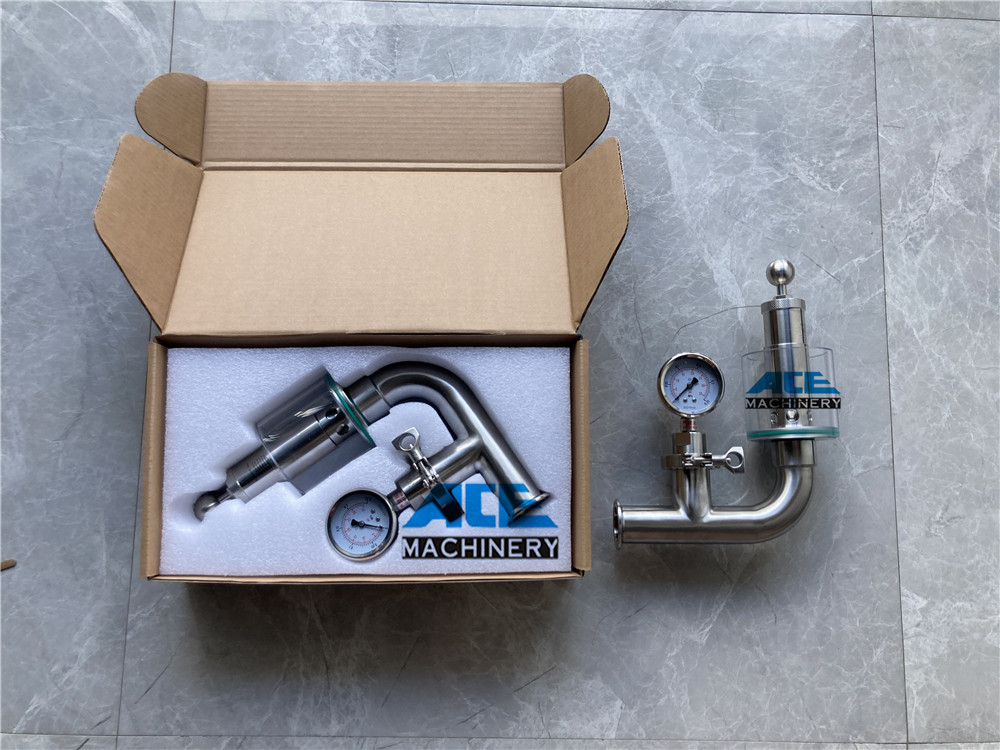

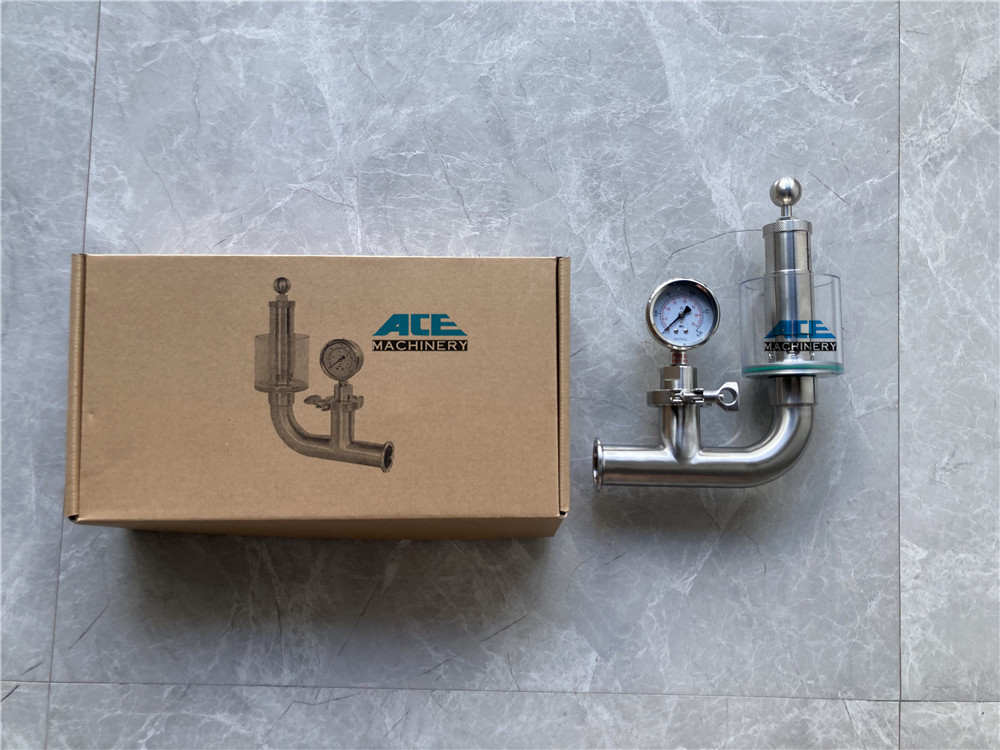

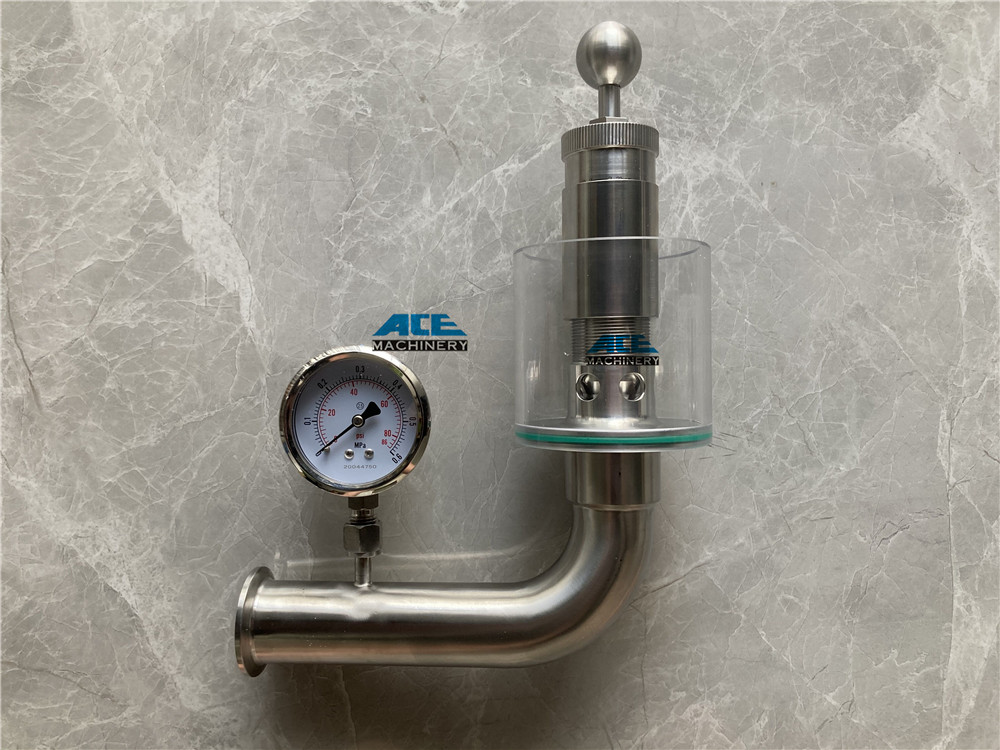

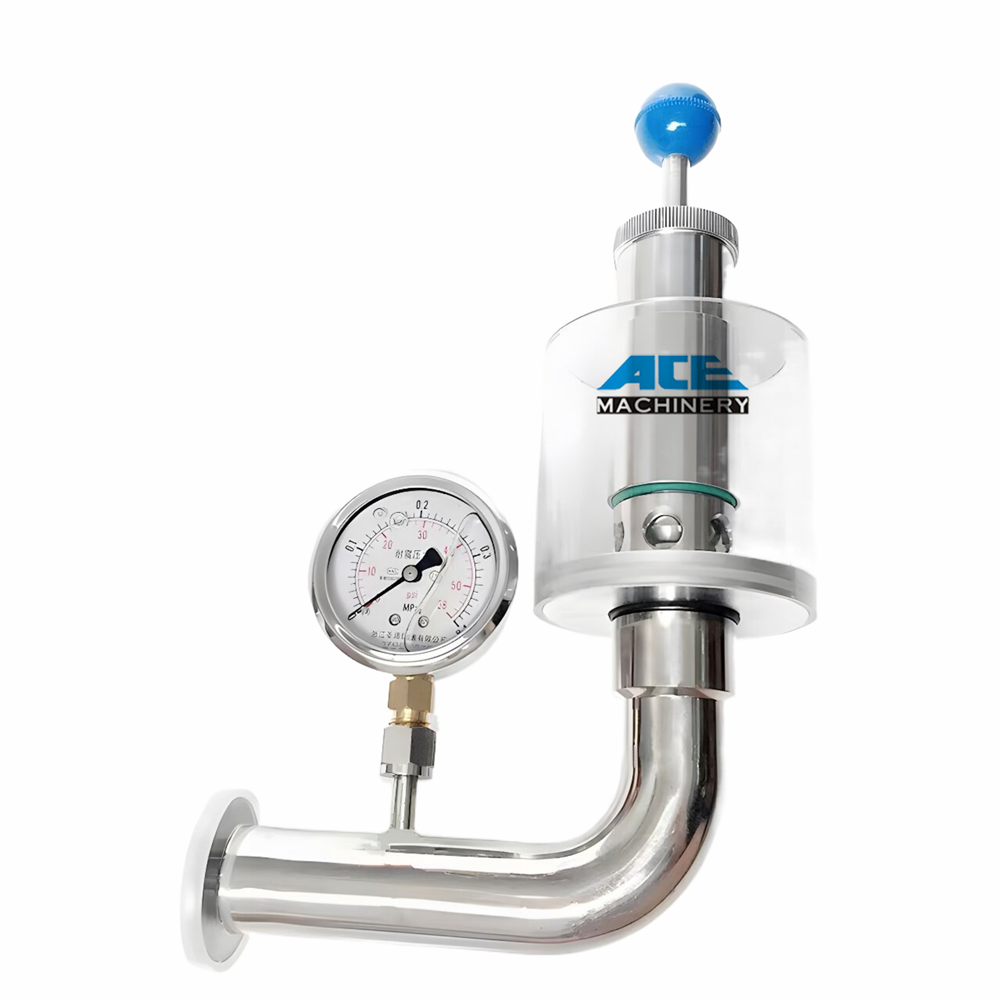

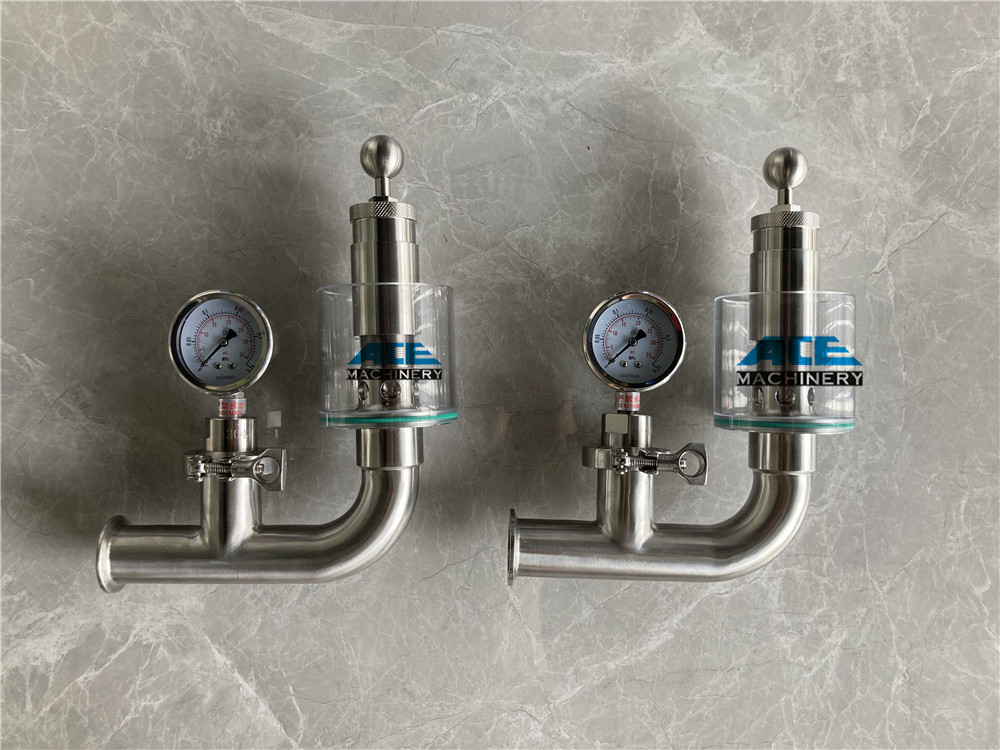

SS304 Sanitary tri clamp spunding valve Air Pressure Relief Valve Exhaust Valve With Pressure Gauge for brewing equipment

Product description

Video

Description


A spunding valve is a pressure-relief valve that is often used in homebrewing. It is placed on the beer gas line between the keg and the regulator. The valve's purpose is to relieve pressure from the barrel so that the beer does not foam when tapped.


We use good quality springs and sealing for spunding valves, and I only want my customers to do great brewing with our accessories because I am a home brewery fan.


Tips: ball color-blue, black, or stainless steel ball, but we will send stainless steel ball without notification.

Features:

* Pressure range: 0-2.2bar

* 100% Stainless Steel SS304

* 1.5 " Tri Clamp fitting

* 17-7 stainless steel springs from Japan, excellent performance

 * 30 days on seals. All valves pressure tested


tri clamp spunding valve

ApplicationFood & Beverage & Chemicals & Pharmaceutical
Customized supportOEM, ODM
Pipe Size1.0"-1.5", Customized
MaterialStainless steel 304/316, 1.4301/1.4404
StandardDIN/SMS/ISO/3A, OEM
Surface treatmentCNC,Mirror polishing, Customized
Connection ModeClamp/Thread/Weld
Working pressure0-3 BAR, Customized
Working temperature-60-180°C (Silicone), -50~150°C (EPDM), -40~220°C (PTFE)
Sealsilicone,EPDM,FKM,PTFE,NBR

tri clamp spunding valve

Application:

The safety exhaust valve is a sanitary design and stainless steel manufacturer used to protect the flow through pipes, pumps, devices, tanks, etc. It is widely used in pharmaceutical, food, beverage, dairy, beer, and other industries.

Work Principle:

The safety exhaust valve is designed to be healthy and safe to prevent danger and equipment failure caused by pressure. The exterior design has transparent windows to observe the overflow, and the pressure setting can be achieved through the upper handwheel. Debugging can be seen clearly through an external pressure gauge.
