chemical storage tank design

Designing Chemical Storage Tanks provides an overview of the design process for chemical storage tanks. It includes a description of the different types of tanks, the materials used in their construction, and the important design considerations for each type of tank.

The article also discusses the code requirements for tank design and construction. There are many different types of chemical storage tanks, each with its own set of design considerations.

The storage space properties of liquid chemicals and also oil items are not precisely the same, and also a wide range of fluid chemicals, as well as demand is not as high as oil products, so the single storage tank capability of fluid chemical storage tanks is additionally smaller sized. As a result of the unique nature of liquid chemicals, in the layout of chemical storage tanks, the style parameters of the storage tank, products, architectural kinds and container devices are various from the design as well as the options of petroleum-based tank.

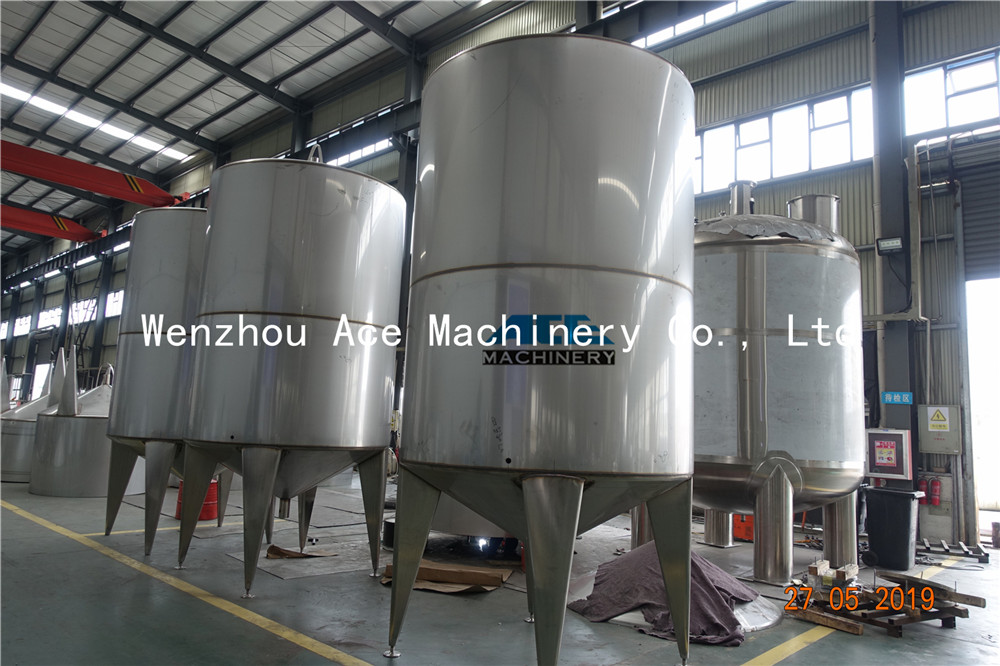

chemical storage tank design

The storage tank structure type

For oil items tank, the frequently made use of tank types are vaulted storage tanks, interior drifting roofing system storage tanks, exterior floating roofing containers, and so on. As the solitary container capacity of fluid chemical tank are normally tiny, not utilizing outside floating roof covering containers, in the form of tank structure, there are particular special structures.

1, risen nitrogen seal framework

For the complying with features of chemical tank, typically established the storage tank nitrogen seal protection system.

(1) more poisonous, a lot more contaminating materials to the setting.

(2) strong water absorption, very easy to trigger the product moisture rise of the material.

(3) a lot more conscious oxygen, very easy to oxidize the product.

(4) reduced the flash points, the better the danger of the product.

Nitrogen seal security system, describes the area in between the product and also the top of the storage tank is loaded with nitrogen, the tank to preserve a particular pressure (favorable stress). When the medium inside the tank is drained or due to the lowering of the outdoors temperature, the system can automatically replenish the nitrogen to prevent outdoors air from entering. When the container is filled with fluid or the stress inside the container is greater than the nitrogen seal stress as a result of the increase in outdoors temperature level, it can be immediately discharged via the breathing shutoff. For safety reasons, usually set up an emergency air vent manhole at the top of the container. Storage tank set nitrogen seal security system, can successfully isolate the air, so that the material does not speak to the wetness and also oxygen in the air, control the water content of the oxygen and the web material content of the gas phase space, to avoid material absorption as well as combustion or explosion, but additionally to prevent product wear and tear. At the same time, the nitrogen seal security system can keep the positive stress inside the tank, which can lower the little breathing loss of products.

2 , Nitrogen-sealed tank with internal drifting roof

Compared with the conventional drifting roof storage tank, the nitrogen-sealed structure of the internal floating roof storage space tank has no roof covering or wall surface venting openings, and the top of the tank is furnished with breathing valve, fire arrestor and so on. Inner drifting leading nitrogen sealed storage space container can be made use of for waste recovery, the breathing valve breathed out gas healing procedure to avoid toxic gases into the ambience, pollution of the atmosphere.

3, the low-pressure tanks.

Oftentimes, in order to reduce the dissipation loss of low boiling point storage space liquid in storage, frequently require to improve the storage stress of the tank. Currently, the residential upright round tank layout criteria are mostly SH 3046-1992 "petrochemical upright cylindrical steel bonded tank style specs", GB 50341-2003 "vertical round steel welded oil storage tank style specs". These two specs are required to create pressure is not higher than 6KPa. When the storage tank design pressure is higher than 2KPa and also less than 6KPa, in the tank wall surface computation need to take into consideration the impact of air pressure on the tank wall surface density. For storage tank pressure greater than 6KPa storage tanks, need to be created and also computed according to API620 "Design and Construction of Large Welded Low Pressure Storage Tanks". For low-pressure tank design computations, mostly against the pressure circle, container wall surface estimations, support bolt layout as well as various other aspects of the content.

The design of the pressure-resistant ring is generally with the computation of the total circumferential force, identify the called for pressure-bearing location, select the advised pressure-bearing ring structure, determine the pressure-bearing location of the selected structure to make sure that it is larger than the required location. Reduced pressure tank wall density can be calculated by the tank complimentary body evaluation of the storage tank wall warp, circumferential unit interior force, and then establish the wall thickness through the formula. The design of the support should be based upon the external load to identify the lifting pressure, figure out whether it is more than the complete weight of the tank roofing system, container wall and also the parts it sustains, figure out whether to establish the anchor tool.

Second, the selection of products

1, the container steel plate

( 1) carbon steel tank

For traditional petroleum product storage tanks, commonly used steel plate Q345R as well as Q235-B. For the container wall surface thickness of thicker steel plate, only utilize the higher toughness Q345R, for the top and also base of the container, are normally made use of Q235-B steel plate. In chemical tank, for the level of toxicity of the chemical storage tanks as well as extremely hazardous media, due to the Q235 series steel plates, P material is reasonably high, the basic product does pass by Q235 collection steel plate, even more Q345R as well as other better efficiency steel plate.

( 2) Stainless steel tank

As some chemicals on carbon steel deterioration is more serious, such as Antarctic acetic acid, acrylic acid and other media, some chemicals have much more rigorous demands for pureness, the presence of pollutants, not only impact the quality will certainly likewise affect the list prices of chemicals. This kind of chemical storage tanks are usually chosen austenitic stainless steel materials. Austenitic stainless-steel describes the stainless steel with austenitic organization at room temperature level, this steel is easy to passivate in the oxidizing atmosphere at space temperature level, to ensure that the surface produces a layer of chromium oxide, mostly safety movie, so that the rust price is substantially lowered, yet also to minimize the air pollution of chemicals by iron ions.

2 , Inner floating tray

For the internal drifting top tank, the frequently utilized floating tray products are: aluminum alloy inner drifting tray, stainless steel internal drifting tray, carbon steel welded inner floating tray. Amongst them, light weight aluminum alloy inner floating disk as well as stainless steel inner drifting disk are floating cylinder assembly internal floating disk, generally have professional makers manufacturing and installation, the price is lower than carbon steel welded internal floating disk. Course I and course II toxic liquid inner floating leading storage tank, do not make use of the internal drifting top constructed from fusible materials, that is, do not use the setting up of light weight aluminum alloy inner drifting disk.

3, container sealing

NBR has excellent oil resistance, high wear resistance, good warmth resistance, and relatively affordable, widely utilized in traditional oil items storage tanks. The drawback of nitrile rubber is not resistant to aromatics, halogenated ketones, esters as well as hydrocarbons corrosion, in chemical storage space containers need to consider various other corrosion-resistant rubber. Fluorine rubber has heat resistance, oil resistance and resistance to a selection of chemical disintegration characteristics, has a high degree of chemical stability, is presently the very best of all elastomers in the media corrosion resistance of a kind. The storage of aromatic, halogenated hydrocarbons, ketones and esters of chemical storage tank drifting tray sealing material can be chosen fluorine rubber seal.

Third, the structure style

1, the bottom of the tank style

At present, the bottom structure of upright cylindrical tank generally has a favorable cone base framework, inverted cone base framework and also single-sided sloping base framework. For chemical tank, usually make use of inverted cone bottom structure or single-sided sloping base structure. Compared to the traditional favorable cone base tank, upside down cone base and also single-sided sloping bottom structure can promptly and also effectively concentrate the water, sludge and also various other impurities in the tool to the lowest point of the tank in the liquid collection storage tank, and also timely discharge out of the tank, which can make certain the high quality of the kept medium and also improve the pureness of the kept medium, so it is specifically appropriate for the storage space of fluid chemical media. Upside down cone base and also single-sided sloping base tank in the lowest factor of the tank are readied to gather liquid storage tank. For upside down cone bottom tanks, the fluid collecting container remains in the center of the storage tank base. As the center of the storage tank base negotiation contortion is the largest, the force situation is additionally much more extreme, so the general collection tank using the whole steel plate marking molding.

2 , Foam barrier gadget

As some chemicals are water-soluble media, when considering foam fire snuffing out, foam buffering tool is required to make the anti-soluble foam efficiently spread over the entire liquid surface to contribute in fire extinguishing. The container can be set up with an angle plate chute type foam buffer device. The likely plate and the storage tank wall create a chute with a cross-section of equilateral best triangular, floating along the tank wall, so that the foam moves down the chute as well as spreads on the liquid surface, playing the function of fire extinguishing.

Fourth, the conclusion

1, for liquid chemical storage tanks, according to the attributes of the medium, the level of toxicity required to identify the structure of chemical storage tanks develop.

2, chemical storage tank product choices should be based on the corrosiveness of the medium, the level of toxicity and cleanliness demands to establish the primary chemical tank steel plate, floating plate and floating plate securing products.

3, chemical storage tanks are typically made with upside down cone base and also single-sided sloping bottom structure to enhance storage quality.

Contrasted with the conventional floating roofing storage container, the nitrogen-sealed framework of the inner floating roofing storage tank has no roof or wall venting openings, as well as the top of the tank is outfitted with breathing valve, flame arrestor and so on. At present, the residential upright round storage space container style standards are generally SH 3046-1992 "petrochemical upright round steel welded storage tank style requirements", GB 50341-2003 "vertical cylindrical steel welded oil storage tank design specifications". For storage tank pressure better than 6KPa storage tanks, require to be created and also computed according to API620 "Design and also Construction of Large Welded Low Pressure Storage Tanks". Low pressure storage space tank wall thickness can be computed by the container cost-free body evaluation of the container wall warp, circumferential unit interior force, and then figure out the wall thickness through the formula. Contrasted with the standard positive cone base storage tank, upside down cone base and single-sided sloping base structure can promptly and also effectively concentrate the water, sludge as well as various other pollutants in the medium to the most affordable point of the storage tank in the fluid collection container, and timely discharge out of the container, which can make certain the quality of the stored medium as well as boost the purity of the kept medium, so it is especially suitable for the storage of liquid chemical media.
